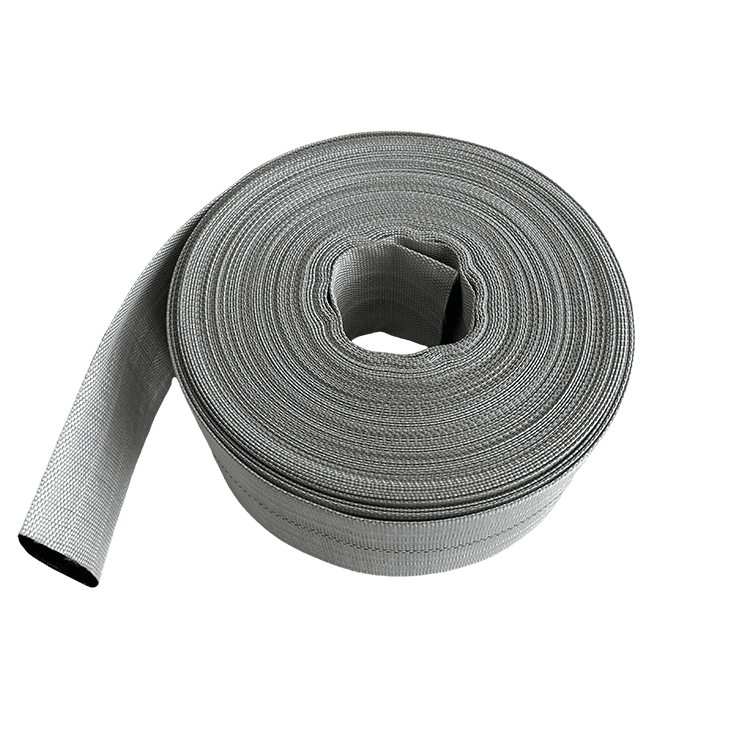

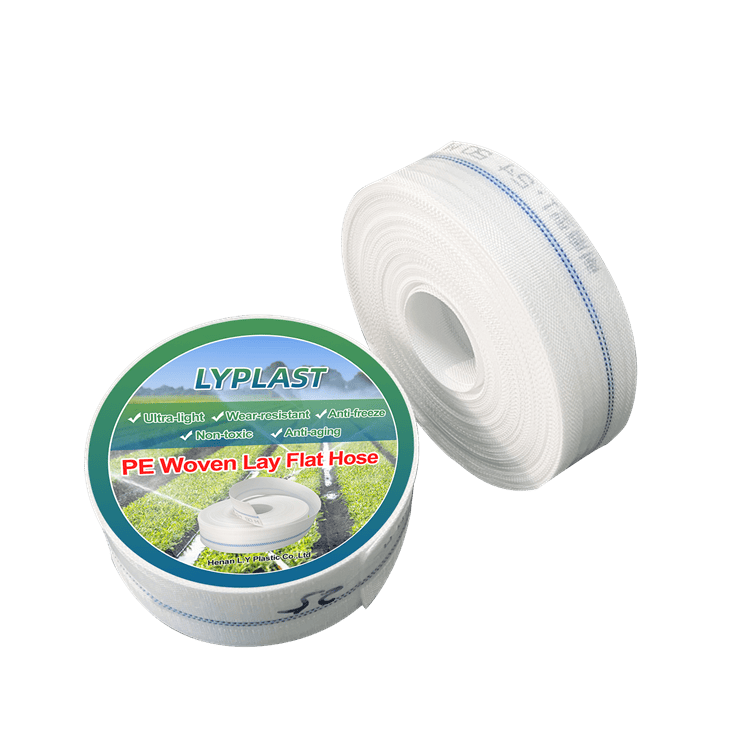

PE Woven Lay Flat Hose

    The best alternative to PVC water hose/ higher cost performance / higher efficiency

    Size:1-12 inch

    Work Pressure: 2 – 16 Bar

    Stnd. length: 100 meters/roll

    Color: White (can be customized)

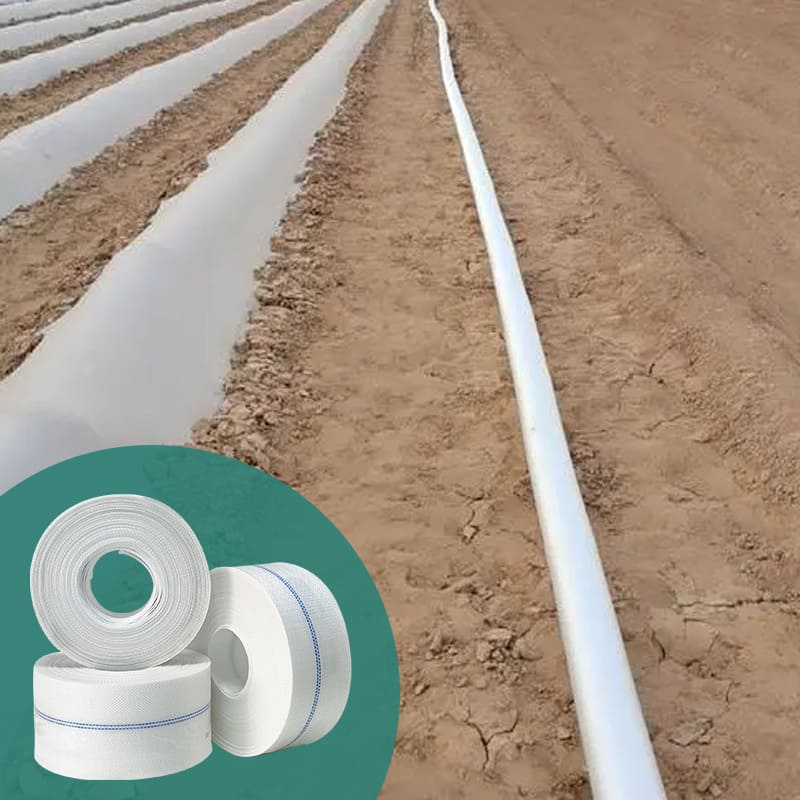

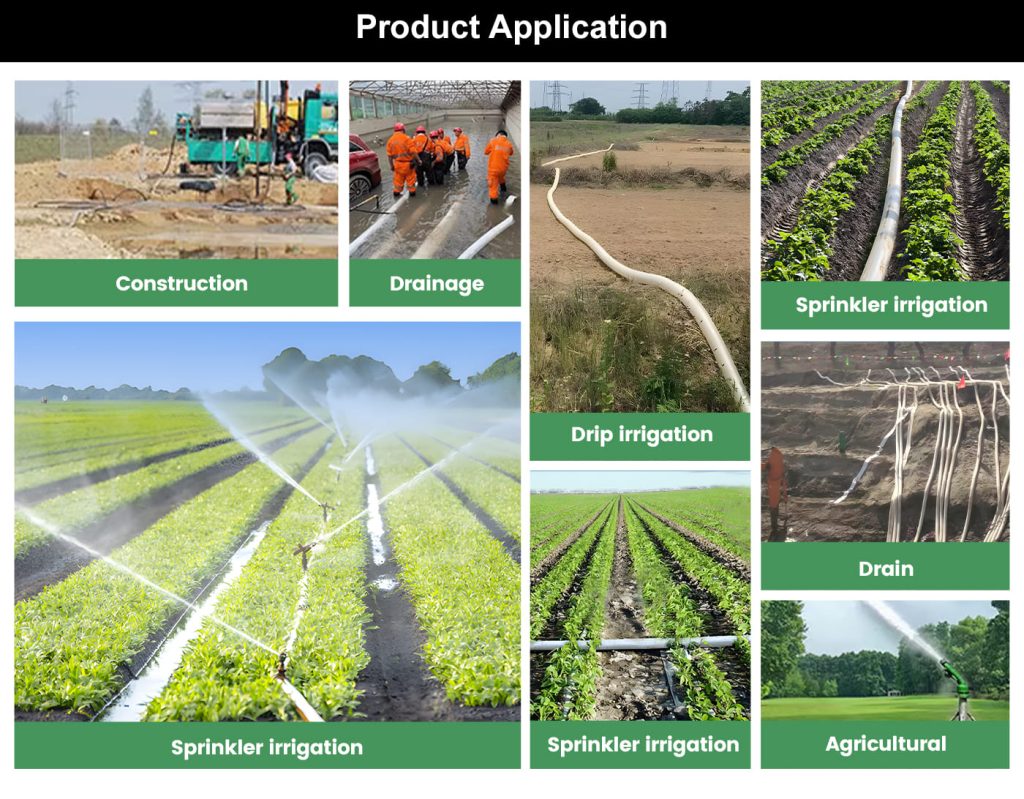

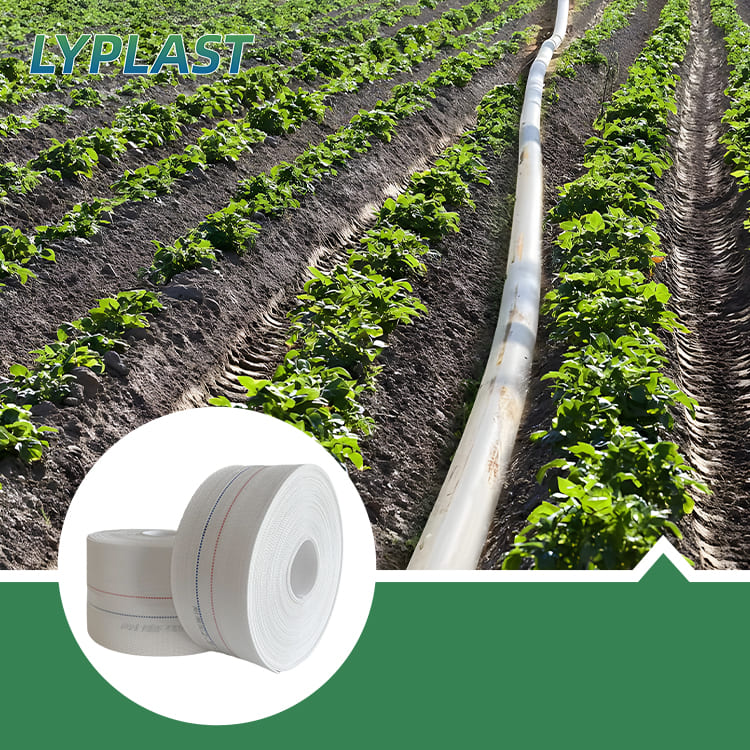

    • Agricultural irrigation
    • Drainage
    • Water pump

LYPLAST pe woven lay flat hose is a new type of ultra-thin polymer woven composite hose. It is mainly designed to reduce labor intensity. Polymer woven hose and existing social products.

Advantages:

Lightweight: Traditional hoses that used to require two or three people to move can now be moved by only one person.


Non-toxic: pe woven lay flat hose hoses are non-toxic and odorless.


Aging resistance: pe woven lay flat hose has no aging phenomenon after being exposed to the sun for two years.


Frost and fold resistance: Compared with PVC hoses, pe woven lay flat hoses are more frost-resistant, will not harden at minus 40 degrees, and have several times better fold resistance.

LYPLAST PE Woven Lay flat hose VS Traditional hose

Product Name Weight(kg) Working Pressure(Bar) Aging resistance
pe woven lay flat hose 2inch: 4kg(50m) 7 No aging phenomenon after 2 years of exposure to the sun, no hardening at minus 40℃
Traditional hose 2inch: 8kg(50m) 4 Not resistant to aging, service life 1-2 years

Show Details:

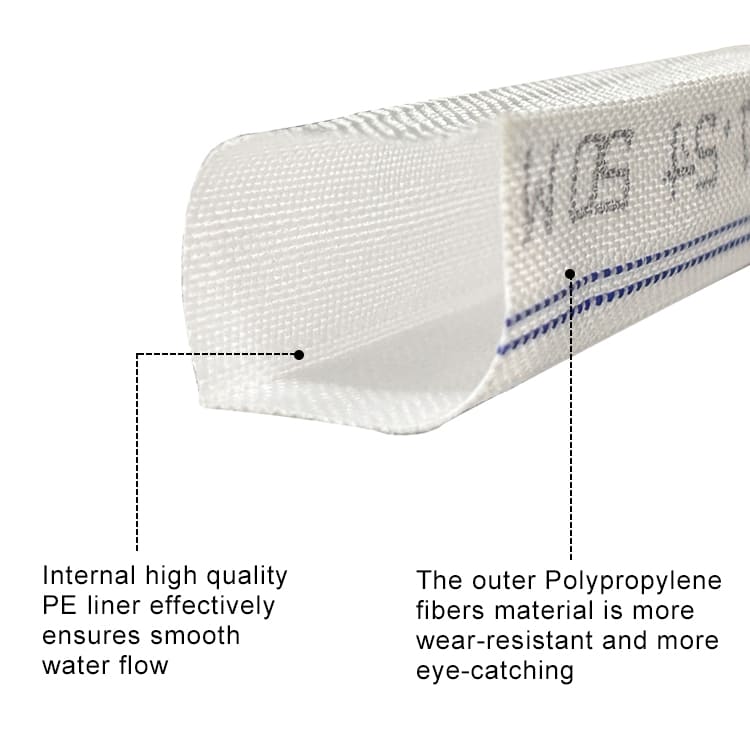

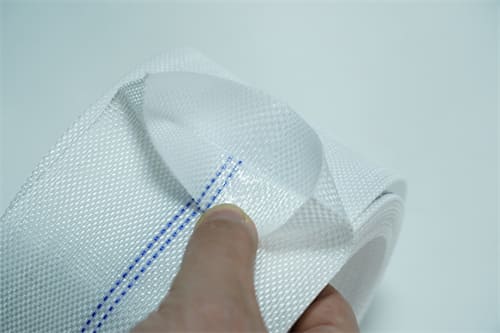

  • 1. Outer layer polyester + inner layer PE double-layer structure ensures high water pressure work.

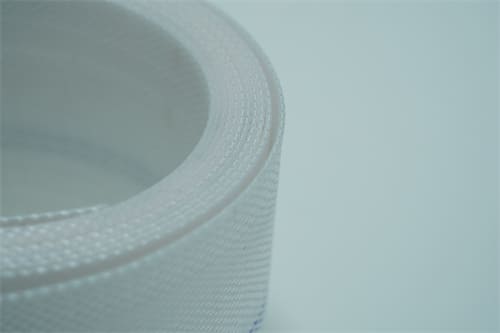

  • 2. Circular weaving process one-piece molding without gaps.

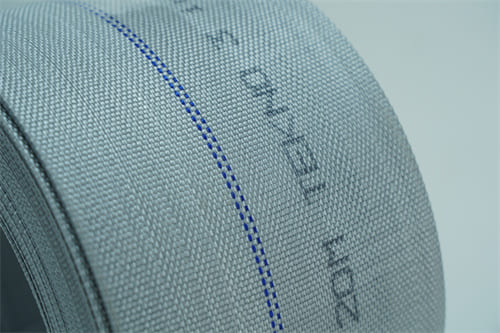

  • 3. Spray code mark every 1 meter (meters, size).

Product Parameters

Diameter(Inch) W.P.(Bar) B.P.(Bar) Single Roll Length
1 7.2 15 50/100m
1.2 6 12 50/100m
1.5 5.58 11 50/100m
2 4.2 9 50/100m
2.5 3.9 8 50/100m
3 3.6 7.5 50/100m
3.5 3.3 7 50/100m
4 2.7 5.5 50/100m
4.5 2.58 5 50/100m
5 2.4 4.8 50/100m
6 1.8 3.5 50/100m
7 1.5 3 50/100m
8 1.2 2.4 50/100m
10 0.9 1.8 50/100m

Different types of designs Meeting different needs.

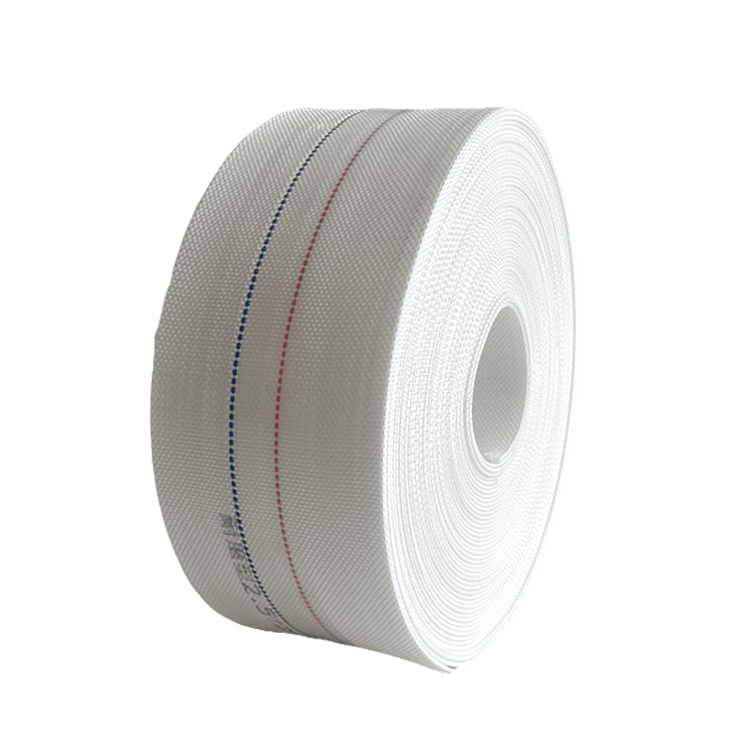

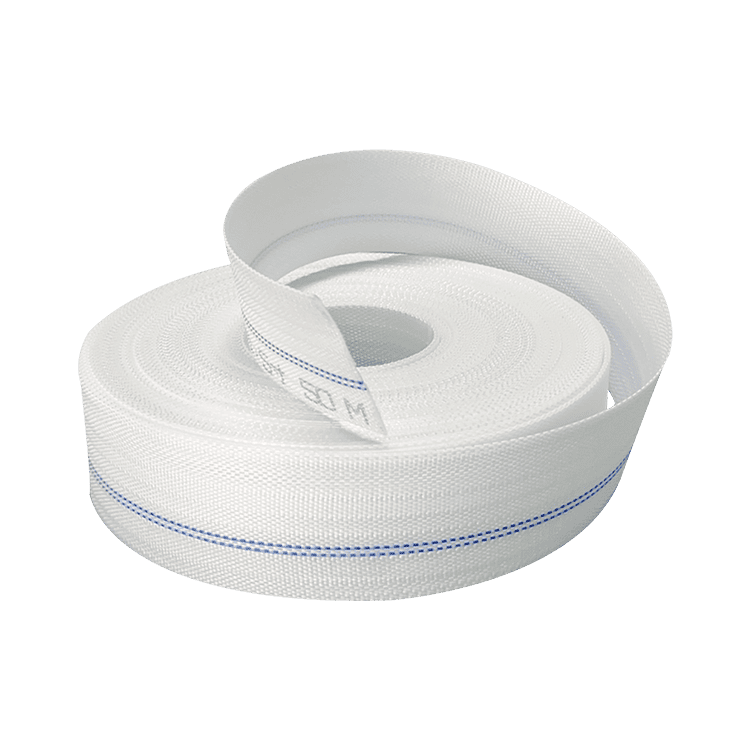

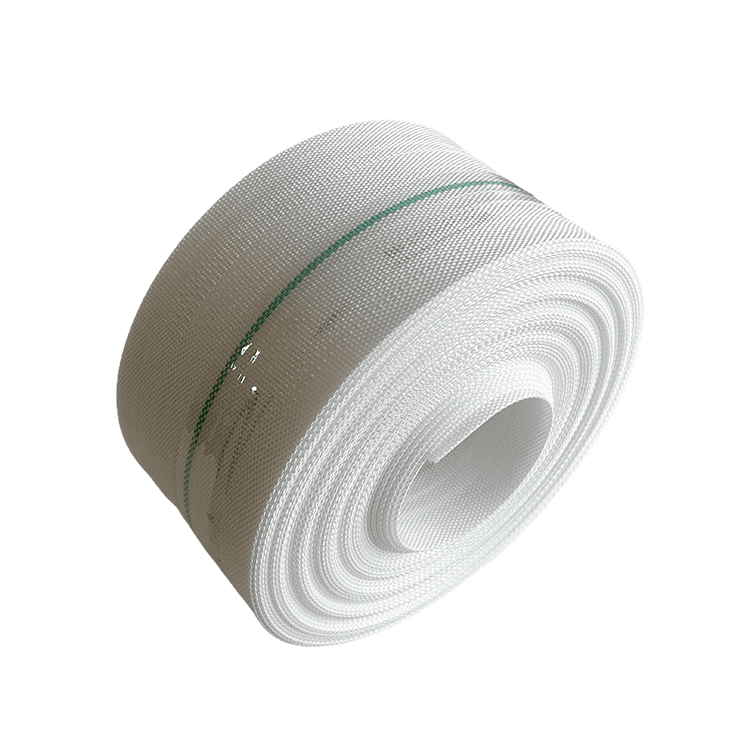

  • pe woven lay flat hose

    PE Woven Lay Flat Hose

  • pe woven lay flat hose pro

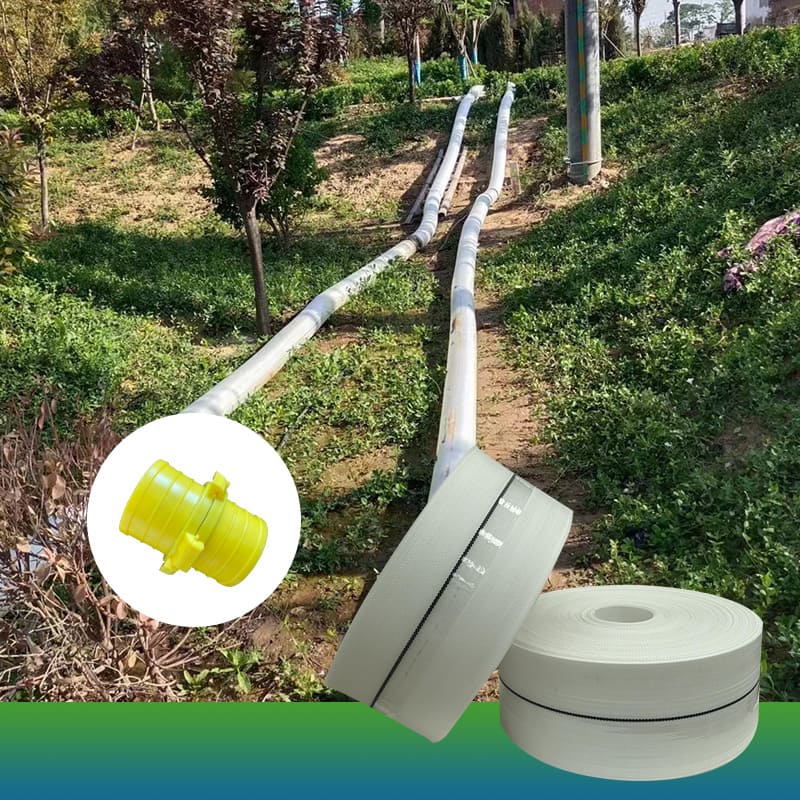

    PE Woven Lay Flat Hose PRO

  • pe woven lay flat hose plus

    PE Woven Lay Flat Hose PLUS

  • pe woven lay flat hose anti-psn

    PE Woven Lay Flat Hose ANTI-PSN





FAQ

Q:Your water hose looks so thin and feels flimsy. Can it be used?
A:Our pe woven lay flat hose is ultra-thin and pressure-resistant. The original intention of designing this water hose was to greatly reduce the labor of the majority of users and allow users to use a light and fast new water hose. The wall thickness of our water hose is 75 threads, which is less than 1 mm, but our water hose is absolutely pressure-resistant, wear-resistant, sun-resistant, anti-freeze and anti-bending.

Q:How many pressures can your water hose withstand?
A : 5Bar is no problem, because the raw material of our water hose is polyester + PE. First of all, this raw material directly determines its pressure resistance, wear resistance, frost resistance, flexure resistance and weathering resistance. In addition, our circular warp and weft density textile process forms an integrated whole without any gaps in the middle, and the pressure resistance is greatly enhanced. Our water hose can generally withstand a minimum pressure of 5Bar without any problem. Every meter of our water hose will undergo a pressure test before leaving the factory. Unqualified products will be destroyed directly, and qualified and durable products will be delivered to customers!

Q:Can your water hose survive the winter?
A: Our pe woven lay flat hoses are frost-resistant and anti-bending. In fact, many hoses are not frost-resistant. Once winter comes, the hoses will break and crack. This is a problem that bothers customers and dealers. However, our hoses will not harden at minus 40 degrees. As long as customers store them well in winter, they can still be used normally in the spring of next year.
